Temperature
Four temperature steps across the shot, each tied to the water delivered.

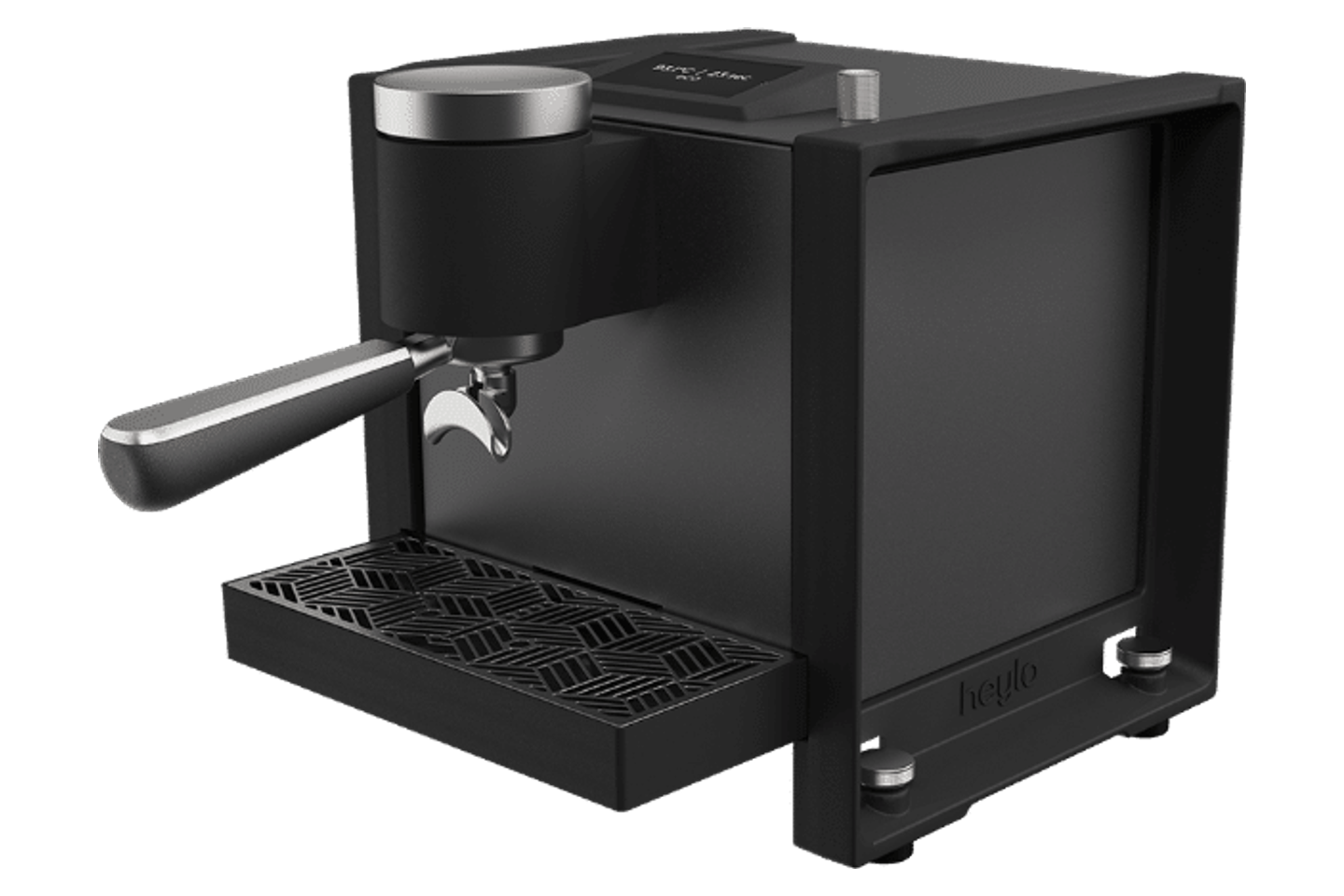

An espresso machine without a boiler. Water is heated by induction for each shot, as it is pulled, to the temperature the recipe asks for. Temperature, pressure and volume are set phase by phase, so a recipe here is a curve, not a single number.

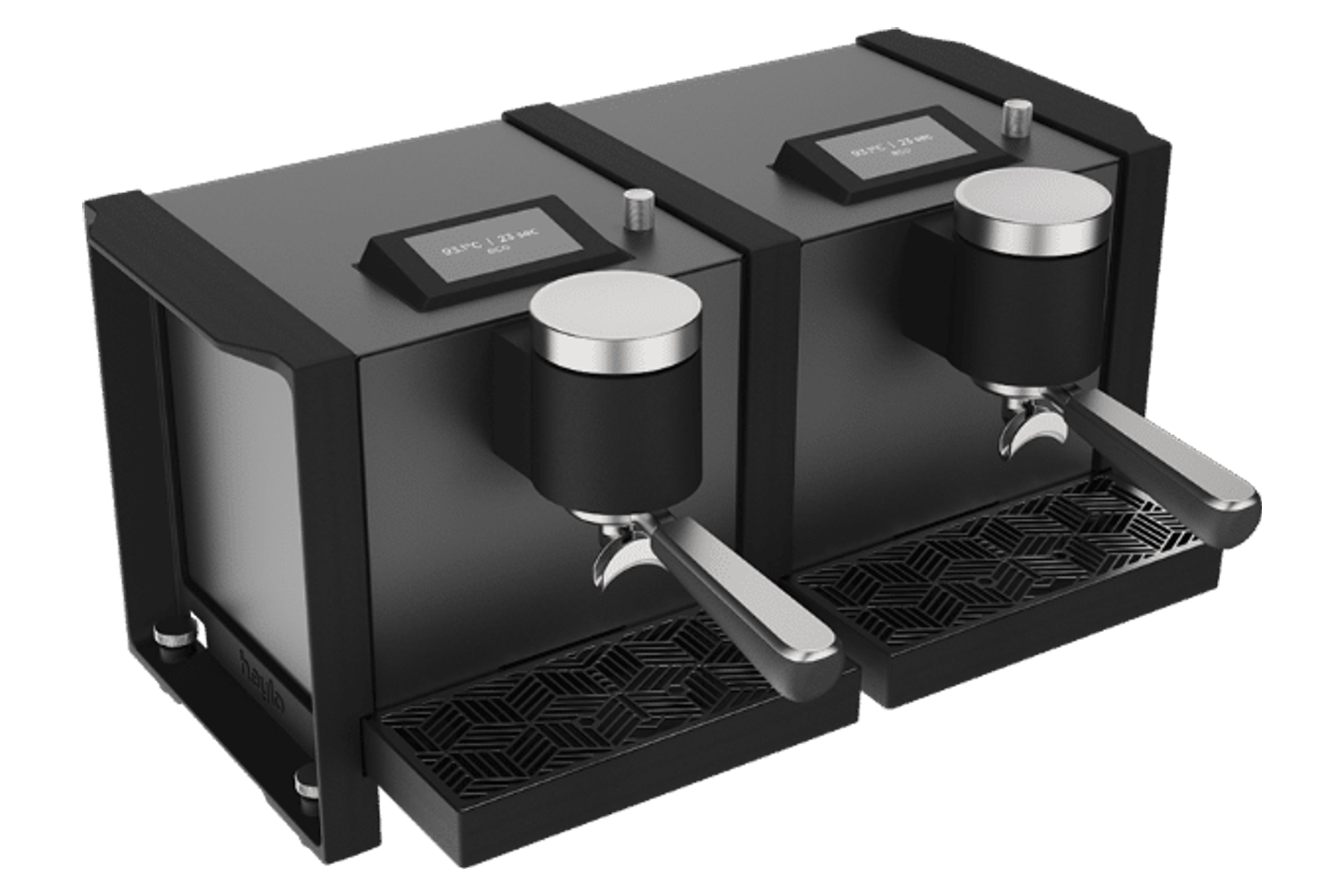

One group per unit. Set up two units as a double-head workstation, or pair one with the Heylo Milk Unit.
THE RECIPE
A recipe is a curve, not a number.
A single set point is the norm: one temperature, one pressure. On the Heylo Coffee Unit a recipe sets how the shot moves: how hot the water is at the start and at the end, how hard the pump pushes in each phase, and how much water each phase gets. Save up to 100 recipes per group and switch between them from the knob.
Pressure
Four phases: pre-infusion, ramp, infusion, post-infusion. Pump power and water volume for each.
Volume
Set in millilitres, phase by phase. The total is the sum.
TEMPERATURE
Start where the coffee wants it. Finish where it should.
Water is heated the moment it passes the induction element, so its temperature can change during the shot. A recipe sets four temperature steps, each tied to a volume of water, anywhere from 88 to 96 °C: the first millilitres can run hotter than the last, or cooler.
There is no boiler. The one thing kept warm is the group itself, held at a reference temperature between the highest and lowest points of the recipe, so it neither cools the water nor heats it on the way to the coffee.
EXAMPLE RECIPE
Temperature drop. 93 °C at the start of the shot, 87 °C at the end, group at 90 °C. The intent: brightness and aroma first, body in the middle, less bitterness at the finish.
Water delivered
- 93 °C
- 91.5 °C
- 89.5 °C
- 87 °C
- Group 90 °C
PRESSURE
Four phases. One smooth line.
Pre-infusion wets the coffee gently. The ramp raises the pump to the extraction level over a set volume of water, without a step. Infusion is the main extraction. Post-infusion is the finish. Each phase has its own pump power and its own millilitres.
Change the dose on the home screen and only the last phase changes. Change the temperature and the whole curve shifts by the same amount. The shape of the recipe survives everyday adjustments.
Pump power
Water delivered
- Pre-infusion
- Ramp
- Infusion
- Post-infusion
PRECISION
How exact do you want it? You choose.
Each recipe carries a precision mode. Fast starts the shot as soon as the water is within 5 °C of target. Precise waits for 1 °C. Normal sits between. A tighter window costs a few seconds before the water reaches the coffee; a wider one starts sooner.
Fast
Within 5 °C of target.
Normal
Within 3 °C.
Precise
Within 1 °C.
CONTROLS
Two knobs. Three views.

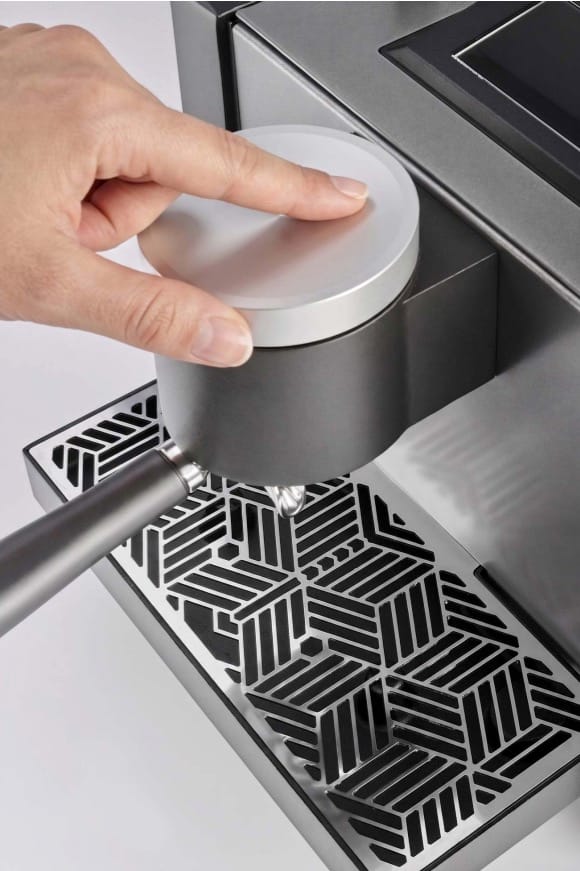

The setting knob: press to select, turn to change, press to confirm. The group knob: press to brew.
Basic shows the recipe, temperature and volume. Chart draws temperature and pressure live while the shot runs. Advanced shows every live value: group and water temperature, flow, pressure, pump and inductor power.
ENERGY
No boiler. Nothing to keep hot but the group.
The group holds its reference temperature and the water is heated as the shot is pulled. Depending on usage, save up to 90% on energy consumption compared to a traditional machine setup.
| Heating | Induction, on demand. No boiler. Heated brew group held at a reference temperature. |
|---|---|
| Brew temperature | 88–96 °C, in four steps across the shot, each tied to a water volume |
| Pressure | Four phases (pre-infusion, ramp, infusion, post-infusion), pump power and volume per phase |
| Precision modes | Fast (within 5 °C) · Normal (within 3 °C) · Precise (within 1 °C) |
| Recipes | Up to 100 recipes per group |
| Alerts | Smart Alarm flags when a recipe needs adjustment |
| Controls and display | Setting knob and group knob; 4.3-inch colour display with Basic, Chart and Advanced views |
| Filter capacity | 7–26 g |
| Water | Mains 1–10 bar, through a water softener; hardness 7–10 °f |
| Electrical | 220–240 V, single phase, 50/60 Hz; 2400–2800 W |
| Weight | 24 kg |
| Dimensions (W × D × H) | 398 × 430 × 374 mm |
| Drip tray | 0.33 L; 96 mm under the spout |
| Configuration | Standalone module; double-head workstation; combinable with the Heylo Milk Unit or HeyMilky |
| Energy | Depending on usage, save up to 90% on energy consumption compared to a traditional machine setup. |
| Origin | Made in Italy |
Adaptable for any commercial use.
Build out your ideal coffee workstation: pair the Coffee Unit with the Heylo Milk Unit, or add HeyMilky beside it.
